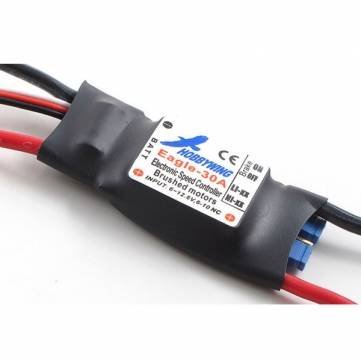

Hobbywing Eagle 30A Brushed ESC Speed Controller
9 available
Details
Shipping: US-Mainland: $1.75 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Hobbywing Eagle 30A Brushed ESC Speed Controller
Brief Description:
Product Brand : Hobbywing
Product Name: Eagle 30A Brushed ESC
Output: Continuous 30A, Burst 40A up to 10 seconds
Input Voltage: 2-3 cells lithium battery or 4-10 cells NiCd/NiMh battery
BEC: 1A / 5V (Linear mode)
PWM Frequency: 2 kHz
Size: 45 x 21 x 8mm
Weight: 21g
Features
Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.
Brake Settings: The brake function can be enabled or disabled by a jumper connector.
Battery Type: The battery type can be chosen by a jumper connector.
Low voltage cut-off protection to prolong the battery life.
Over-heat protection to prolong the ESC life.
Throttle signal loss protection for safe flight.
Advantages
Advanced microprocessor.
Compatible with lithium battery and nickel battery.
User programmable by using the jumper connectors.
Priority Direct Mail 6-9 business U.S. U.K. & Australia Orders
Standard Registered Air Shipping 7-20 day delivery other destinations.
Package Includes:
1 Hobbywing Eagle 30A Brushed ESC
